Why Heavy-Duty Shackles Are Critical for Safe Rigging Operations

Heavy-duty shackles are essential for ensuring secure and reliable load connections in any rigging setup. These essential yet simple parts serve as the connecting element for lifting apparatuses, chains, and slings.

Without proper lifting shackles, the integrity of a rigging system is compromised, increasing the risk of load failures and workplace accidents. Selecting the right rigging shackles is vital to maintain safety and operational efficiency.

Different Types of Shackles Explained – Anchor, Chain, Screw Pin, and Bolt Types

Understanding the various types of crane shackles helps ensure the right fit for your application:

• Anchor Shackles: These have a bigger, rounded bow that can load in multiple directions. This is ideal for applications where side loading might occur, which is common in lifting and hoisting operations.


• Chain Shackles: Designed with a narrower D-shaped body, they perform better straight-line pulls and are preferred in towing and heavy-duty rigging setups.


• Screw Pin Shackles: Offer quick installation and removal, making them suitable for temporary or frequently changed rigging configurations.

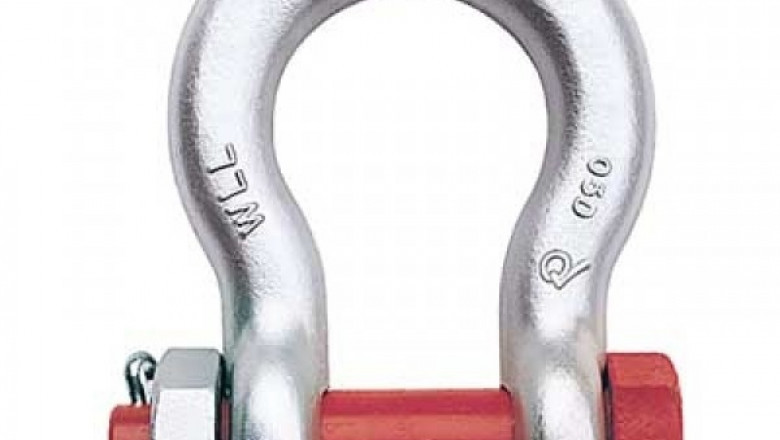

• Bolt-Type Shackles: These are equipped with a nut and cotter pin for added security and are used in permanent or long-term installations where load stability is critical.

Selecting the correct type of rigging shackles ensures load control, minimizes wear, and maintains structural integrity throughout lifting operations.

Material and Load Considerations – Galvanized vs. Alloy Steel

The choice of the material of your heavy-duty shackles contributes greatly to its performance and strength.

Galvanized Steel Shackles: Provide outstanding corrosion protection, meaning they can be used in the outdoor environment or marine environment where there are issues with moisture and weather.

Alloy Steel Shackles: Famous for their excellent strength and load-bearing qualities, the alloy shackles will suit challenging heavy-lift tasks in building, rigging, and industrial operations.

In addition to material selection, don’t forget to check the Working Load Limit (WLL) of the shackle. In order to guarantee safe operation, the WLL should be equal to or greater than that of the highest possible load.

When to Use Lifting Shackles vs. Rigging Shackles – Application-Specific Uses

Choosing between lifting shackles and general rigging shackles depends on the task at hand:

• Lifting Shackles: Engineered for hoisting and lifting applications, these shackles are tested to meet stringent safety standards. Use them when lifting heavy machinery, structural components, or sensitive equipment.


• Rigging Shackles: While also capable of lifting, they are commonly used for securing loads, towing, and load restraint in transport operations.

Always prioritize certified crane shackles explicitly designed for overhead lifting to ensure compliance and safety in critical lifting scenarios.

Inspection Best Practices – Signs of Wear and Replacement Criteria

Regular inspection of heavy-duty shackles is essential for maintaining a safe rigging operation. Key inspection points include:

• Check for Cracks and Deformation: Inspect the body and pin for visible cracks, bends, or warping.


• Look for Excessive Wear: Examine the contact surfaces for abrasion, corrosion, or pitting signs.


• Verify Pin Security: Ensure the screw pin or bolt is secure and free from damage.


• Measure Wear Tolerances: Use calipers to check if shackle dimensions remain within the manufacturer's specifications.

If any defects are found, immediately replace the rigging shackles to avoid equipment failure and potential injuries.

Use the Right Shackle to Ensure Safety and Strength

Choosing the right heavy-duty shackles is not optional — it’s essential for maintaining a safe and efficient rigging operation. Operators can ensure secure load handling in every situation by understanding shackle types, materials, load limits, and application-specific uses.

Murphy Industrial Products, Inc. offers a complete range of rigging and lifting shackles designed for industrial-grade applications. For personalized assistance, reach out through our Contact Page.
