As construction projects grow increasingly complex and time-sensitive, the demand for efficient and adaptable equipment continues to rise. One of the most transformative tools in the realm of deep foundations is the excavator mounted vibratory hammer. These machines represent a blend of engineering innovation and practical application, offering a faster, quieter, and more versatile solution to traditional pile driving methods.

Understanding the science behind excavator mounted vibratory hammers not only highlights their technical strengths but also explains why they have become indispensable in today’s foundation work. From physics to hydraulic engineering, several key principles are at play.

What Are Excavator Mounted Vibratory Hammers?

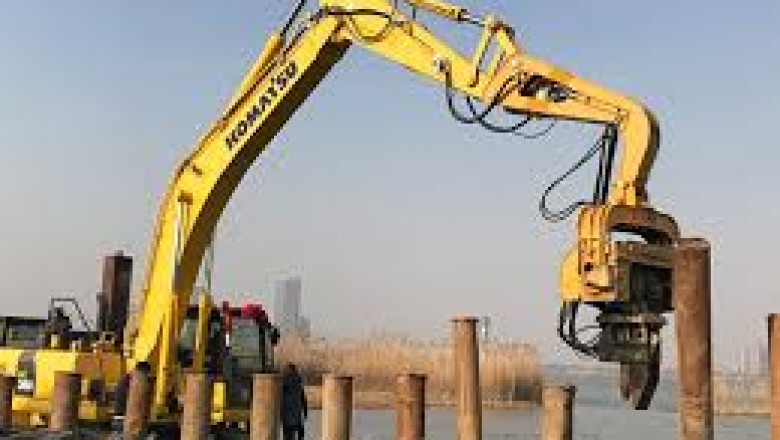

Excavator mounted vibratory hammers are hydraulic attachments that allow standard excavators to drive or extract piles. Instead of relying on impact force, as traditional pile drivers do, vibratory hammers use high-frequency vibration to reduce soil resistance around a pile, allowing it to sink into the ground or be pulled out with significantly less force.

These attachments are particularly valuable in projects where space is limited, noise and vibration regulations are strict, or where the ground conditions are inconsistent. By leveraging the existing mobility and power of an excavator, contractors gain an efficient pile-driving system without the need for cranes or separate rigs.

The Physics Behind Vibratory Pile Driving

At the core of vibratory pile driving is a fundamental principle of soil mechanics: soil resistance can be temporarily reduced by vibration.

When a pile is vibrated vertically at high frequency, the soil particles surrounding it are disturbed. This causes a momentary loss of cohesion and internal friction, making the soil behave more like a liquid than a solid — a phenomenon known as soil liquefaction, though in a localized and controlled manner.

This reduction in resistance allows the pile to slide into the ground under its own weight, combined with the downward force from the excavator arm and the vibratory motion itself. The entire process requires less energy compared to impact driving and results in smoother, faster pile insertion.

Key scientific principles at work include:

• Friction reduction: Vibration reduces the coefficient of friction between the pile and the surrounding soil.

• Soil compaction: As the pile penetrates, the vibration helps settle the soil around it, improving load-bearing capacity.

• Resonance: Matching the natural frequency of the pile-soil system enhances energy transfer and driving efficiency.

The Engineering of Vibratory Hammers

The technical construction of excavator mounted vibratory hammers involves several precision-engineered components:

1. Eccentric Weights and Rotational Systems

Vibratory hammers use pairs of counter-rotating eccentric weights to generate vertical vibration. These rotating masses create a dynamic force that moves the pile up and down rapidly—often at frequencies between 1,500 to 2,500 revolutions per minute (RPM).

The orientation and synchronization of these rotating weights are critical. When properly aligned, the horizontal forces cancel out, focusing all energy vertically to maximize penetration and reduce harmful lateral motion.

2. Hydraulic Power

The hammer is powered by the excavator’s hydraulic system, allowing for seamless control and reliable power delivery. Most modern excavators are compatible with vibratory attachments, especially those with auxiliary hydraulic circuits.

3. Clamping Mechanism

A robust clamp or jaw mechanism secures the pile during operation. This clamp must be able to grip firmly without damaging the pile, even under intense vibration. Most models allow for quick clamp changes to accommodate different pile shapes—such as sheet piles, H-beams, or tubular steel piles.

Advantages in Modern Foundation Work

The increasing use of excavator mounted vibratory hammers in foundation projects is a direct response to the evolving demands of urban and industrial construction.

1. Efficiency and Speed

Compared to traditional impact hammers, vibratory systems can reduce pile driving time by up to 50%. Setup time is also significantly reduced since the same excavator used for site prep can also perform the pile driving.

2. Lower Environmental Impact

Vibratory hammers produce significantly less noise and vibration than impact hammers. This makes them ideal for projects near residential areas, schools, hospitals, or historical buildings.

3. Versatility and Mobility

Mounted on excavators, these hammers offer unmatched mobility. They can operate in tight spaces, on uneven terrain, and in various soil conditions without the logistical challenges of transporting a crane or specialized rig.

4. Cost Savings

The ability to use one machine for multiple tasks (excavation, lifting, and pile driving) leads to lower equipment costs, fewer operators, and reduced fuel consumption. Additionally, the minimized risk of damaging piles due to controlled vibration lowers material waste.

Common Applications

Excavator mounted vibratory hammers are used in a wide range of applications:

• Retaining walls and cofferdams

• Bridge abutments and supports

• Seawalls and marine construction

• Temporary shoring for excavation

• Solar farm piling

• Foundation work in urban infill projects

They are particularly favored in environments where traditional pile driving methods are either too slow, too loud, or simply not feasible.

Key Considerations for Selection

When choosing a vibratory hammer for excavator use, contractors should consider:

• Excavator size and hydraulic capacity

• Pile type and dimensions

• Soil composition at the site

• Operating frequency and amplitude range

• Clamp compatibility

• Noise and vibration thresholds allowed in the area

Partnering with a reputable equipment supplier who can assist with matching the right hammer to your excavator and project type is critical to achieving optimal results.

Conclusion

Excavator mounted vibratory hammers represent the next generation of pile driving tools—blending science, engineering, and practical utility into a highly efficient system. Their reliance on vibration to manipulate soil mechanics allows for faster, quieter, and more adaptable foundation work, meeting the evolving needs of modern construction sites.
